13–20 Bosch Rexroth AG TS 5 3.0 3 842 540 379 (2015.10)
Technische Daten

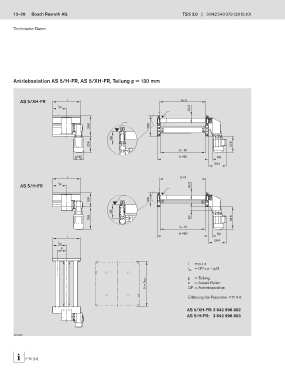

Antriebsstation AS 5/H-FR, AS 5/XH-FR, Teilung p = 130 mm
AS 5/XH-FR l b+3
l DP 33,5
289 289
98
226 226
b–10
142 b+80 50
264
l b+3
l
AS 5/H-FR DP 33,5
199 199
98
316 60 316
b–10
b+80 50
l
264
l DP
p
l = p x n
l = DP x p – p/2
DP
b = b WT p = Teilung
n = Anzahl Rollen
DP = Antriebsposition
Erklärung der Parameter F2 3-6
AS 5/XH-FR: 3 842 998 802
AS 5/H-FR: 3 842 998 803
00132887
F2 3-6
