3 842 540 379 (2015.10) TS 5 3.0 Bosch Rexroth AG 13–21
Technische Daten

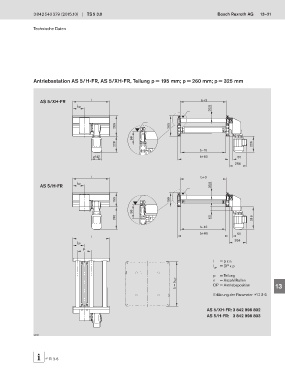

Antriebsstation AS 5/H-FR, AS 5/XH-FR, Teilung p = 195 mm; p = 260 mm; p = 325 mm
1
AS 5/XH-FR l b+3
l
33,5
DP
2
289 289 3
98
226 226 4
b–10
142 b+80 50 5
264
l b+3 6
l DP
AS 5/H-FR 33,5
7
199 199
8
98
316 60 316 9
b–10
b+80 50
l 10
264
l DP
p
11
l = p x n
l = DP x p
DP
12
p = Teilung
b = b WT n = Anzahl Rollen 13
DP = Antriebsposition
Erklärung der Parameter F2 3-6
14
AS 5/XH-FR: 3 842 998 802
AS 5/H-FR: 3 842 998 803 15
16
28121
F2 3-6
