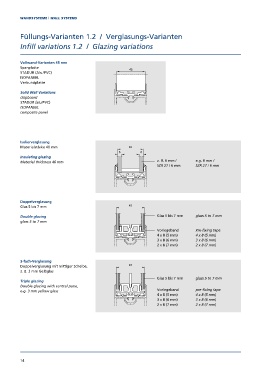

Page 14 - WDS3.0

WANDSYSTEME | WALL SYSTEMS

Füllungs-Varianten 1.2 / Verglasungs-Varianten

Infill variations 1.2 / Glazing variations

Vollwand-Varianten 45 mm
Spanplatte
STADUR (Alu/PVC) 45 mm Spanplatte
ISOPANEEL 45 mm STADUR ( Alu / PVC)
45 mm ISOPANEEL
Verbundplatte 45 mm Verbundplatte
Solid Wall Variations
chipboard
STADUR (alu/PVC)
ISOPANEEL
composite panel

Isolierverglasung
Materialstärke 40 mm

Insulating glazing
Material thickness 40 mm z. B. 6 mm / e.g. 6 mm /
SZR 27 / 6 mm SZR 27 / 6 mm

Doppelverglasung
Glas 5 bis 7 mm
Double glazing Glas 5 bis 7 mm glass 5 to 7 mm
glass 5 to 7 mm
Vorlegeband Pre-fixing tape
4 x 8 (5 mm) 4 x 8 (5 mm)
3 x 8 (6 mm) 3 x 8 (6 mm)
2 x 8 (7 mm) 2 x 8 (7 mm)

3-fach-Verglasung
Doppelverglasung mit mittiger Scheibe,
z. B. 3 mm Gelbglas
Glas 5 bis 7 mm glass 5 to 7 mm
Triple glazing
Double glazing with central pane,
e.g. 3 mm yellow glass Vorlegeband pre-fixing tape
4 x 8 (5 mm) 4 x 8 (5 mm)
3 x 8 (6 mm) 3 x 8 (6 mm)
2 x 8 (7 mm) 2 x 8 (7 mm)
